STV-Z2403A
| Quantity: | |
|---|---|
1. Product Overview

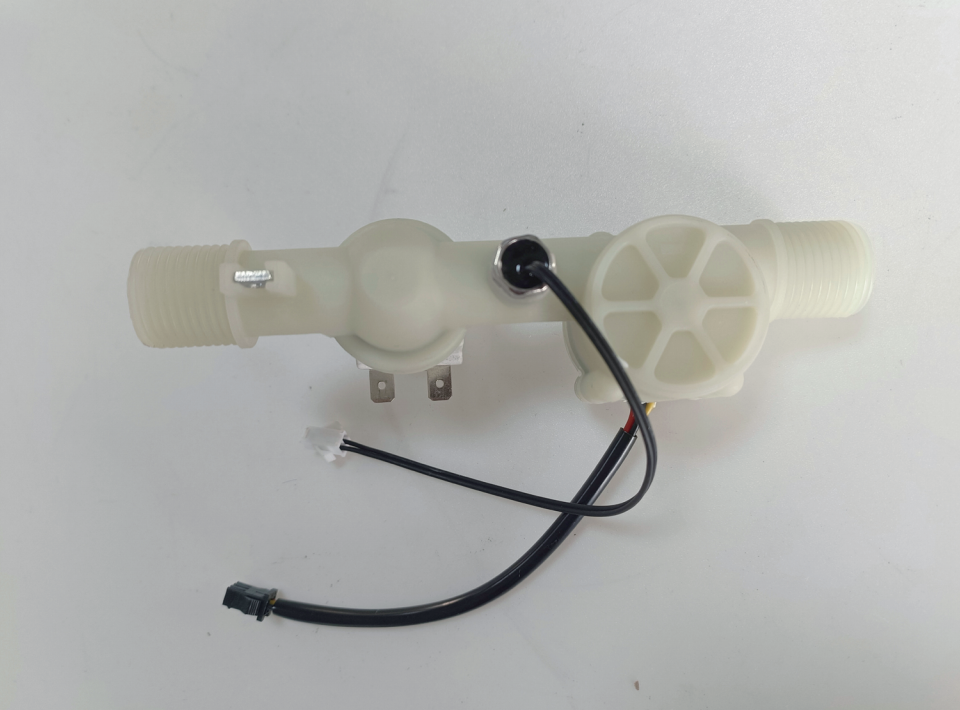

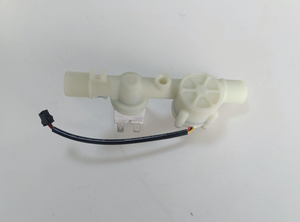

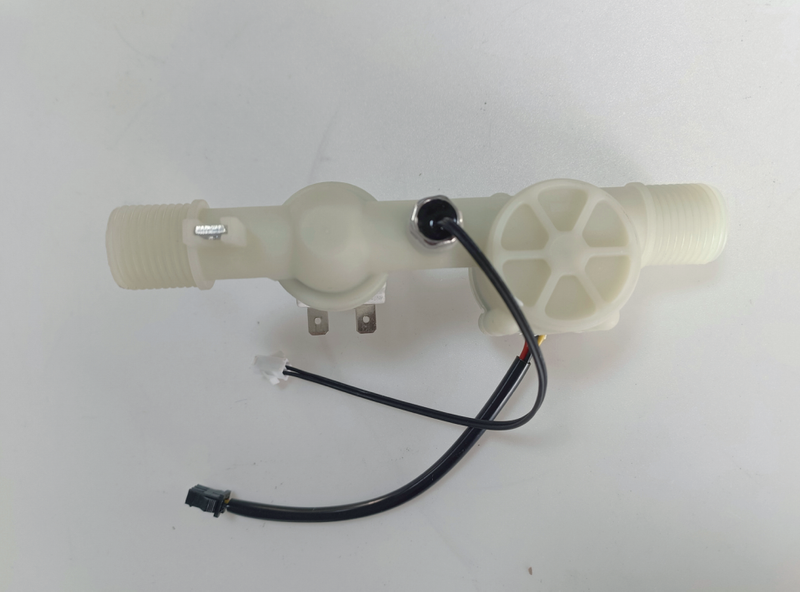

The STV-Z2403A is a high-precision "3-in-1" integrated assembly designed for versatile fluid control applications. Combining a solenoid valve, temperature sensor, and flowmeter into a single compact unit, it offers reliable performance for household appliances, industrial equipment, agricultural irrigation, and medical devices.
2. Technical Parameters
Component | Parameter | Specification |
|---|---|---|
General | Pressure Limit | 0.03 – 1.0 MPa |
Connection Method | G½ Screw Thread (Hot) | |
Control Mode | Normally Closed (NC) | |
Fluid Temperature | 5 – 70°C | |
Solenoid Valve | Operating Voltage | DC 12V |
Temperature Sensor | Operating Voltage | DC 5V |
Accuracy | ±1% | |
Resistance Specs | R25 = 10KΩ, B25/50 = 3950K | |
Flowmeter | Operating Voltage | DC 5V |
Flow Range | 1 – 30 L/min | |
Accuracy | ±5% | |
Output Signal Load | ≤ 10mA (DC 5V) |
3. Key Features
Integrated Design: Combines valve control, temperature monitoring, and flow measurement for simplified system integration.
Wide Applicability: Suitable for a broad range of sectors including home appliances, forestry water systems, and medical instrumentation.
High Precision: Features accurate temperature sensing (±1%) and reliable flow metering across a wide dynamic range.
4. Applications
Household Appliances (e.g., Washing machines, Dishwashers)
Industrial Equipment
Agriculture & Forestry Irrigation Systems
Medical Devices
