Spa Jet Replacement Parts for Hot Tub, Pedicure Chair, Whirlpool Tub, Jacuzzi Tub

Used as a drainage pump in bathtubs, massage bathtubs, whirlpool bathtubs, spa bathtubs, foot massage chairs, foot massagers, etc.
Used for heating constant temperature circulation pump.

Used for washing machine, dishwasher special drainage pump

Used for bathtub, foot bath special drainage pump

Used for bathtub, foot bath drainage pump

Discharge drain pumps for spa pedicure chair parts.
We offer discharge pumps and discharge kits for every pedicure chair.

Used for pedicure chair drain pump.
This compact power drain motor removes water from the bowl to the drainage system in each pedicure spa chair.

Used for washing machine, dishwasher special drainage pump

Household appliance drainage pump

Plumbing component for pedicure spa chair parts.
Top quality plumbing parts and accessories for your pedicure spa chairs with best price ever.

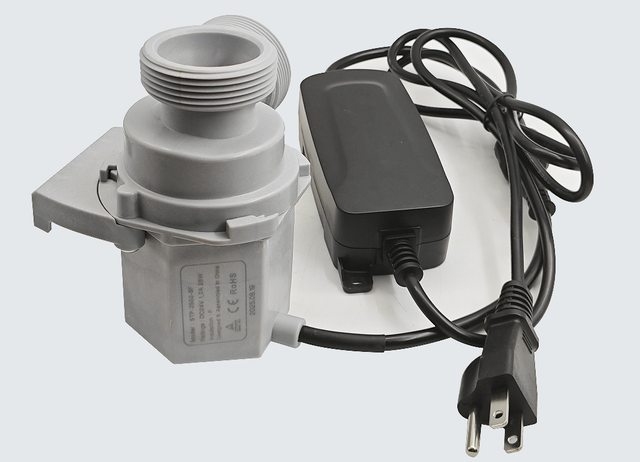

Product Specifications: STP-2502-8F Series High-Performance Drainage Pump
1. Product Overview
The STP-2502-8F is a robust DC drainage pump designed for efficient fluid transfer in specialized equipment. Featuring an innovative internal water-cooling circulation structure, it maintains stable operating temperatures to ensure longevity and reliability. This model offers flexible customization options for installation and electrical parameters to meet diverse engineering requirements.
2. Technical Parameters
Parameter Specification
Model Number STP-2502-8F
Rated Voltage DC 24V
Rated Current 1.2 A
Power Consumption 29 W
Maximum Head 2.0 m
Flow Rate (at 1m Head) 36 L/min
Frequency N/A (DC Operation)
3. Hydraulic Interface & Dimensions
Inlet Diameter: G1-1/2 (Φ47.8mm)
(Standard threaded interface for secure connection.)
Outlet Diameter: G1-1/2 (Φ47.8mm)
Overall Dimensions (L × W × H): 153 × 151.6 × 79.7 mm
4. Key Features & Engineering Notes
Advanced Water-Cooling System:
Adopts an internal circulating water-cooling structure. This design effectively stabilizes the motor's temperature rise during operation, ensuring the product operates in a constant, moderate temperature environment, which significantly extends the service life cycle.

Performance Characteristics:
Parameters are tested at a 1-meter head. Please note that the flow rate decreases as the head increases.

Customization Capabilities:
We offer tailored engineering solutions. The product installation angle, voltage, and frequency can be designed and manufactured according to specific customer requirements.

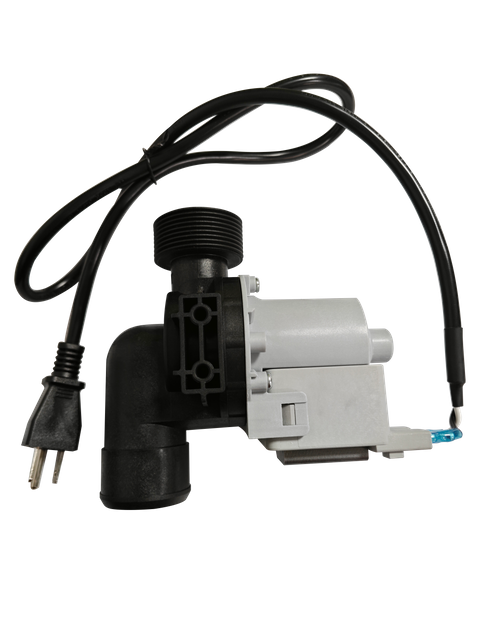

The STP-2109 series is a versatile drainage pump designed for efficient fluid management. It features an advanced internal water-cooling circulation system that maintains stable motor temperatures, significantly extending the product's lifespan. The series is available in both 120V and 220-240V configurations to suit global market requirements.

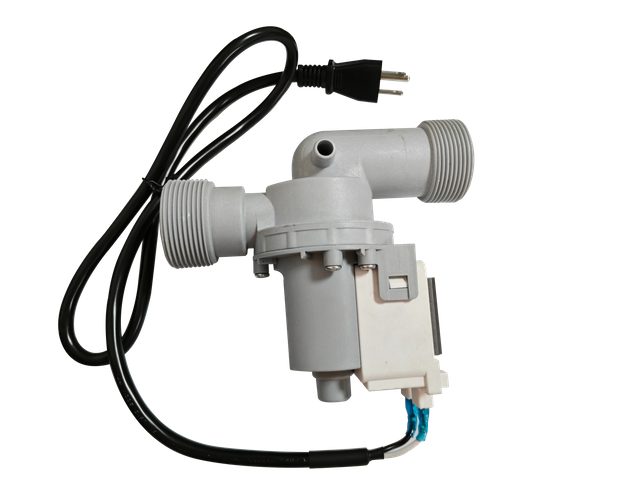

The STP-2110 series is a robust drainage pump designed for efficient fluid management in various applications. Available in both 120V and 220-240V configurations, it features a standardized G1-1/2 interface for versatile connectivity. The unit is engineered with a compact footprint suitable for tight installation spaces while maintaining high-performance standards.
