STP-2502 Drainage Pump

Product Specifications: STP-2502-8F Series High-Performance Drainage Pump
1. Product Overview
The STP-2502-8F is a robust DC drainage pump designed for efficient fluid transfer in specialized equipment. Featuring an innovative internal water-cooling circulation structure, it maintains stable operating temperatures to ensure longevity and reliability. This model offers flexible customization options for installation and electrical parameters to meet diverse engineering requirements.
2. Technical Parameters
Parameter Specification
Model Number STP-2502-8F
Rated Voltage DC 24V
Rated Current 1.2 A
Power Consumption 29 W
Maximum Head 2.0 m
Flow Rate (at 1m Head) 36 L/min
Frequency N/A (DC Operation)
3. Hydraulic Interface & Dimensions
Inlet Diameter: G1-1/2 (Φ47.8mm)
(Standard threaded interface for secure connection.)
Outlet Diameter: G1-1/2 (Φ47.8mm)
Overall Dimensions (L × W × H): 153 × 151.6 × 79.7 mm
4. Key Features & Engineering Notes
Advanced Water-Cooling System:
Adopts an internal circulating water-cooling structure. This design effectively stabilizes the motor's temperature rise during operation, ensuring the product operates in a constant, moderate temperature environment, which significantly extends the service life cycle.

Performance Characteristics:
Parameters are tested at a 1-meter head. Please note that the flow rate decreases as the head increases.

Customization Capabilities:
We offer tailored engineering solutions. The product installation angle, voltage, and frequency can be designed and manufactured according to specific customer requirements.

Model:
STP-2502

Quantity:
Availability:





Inquire Add to Basket

Product Description

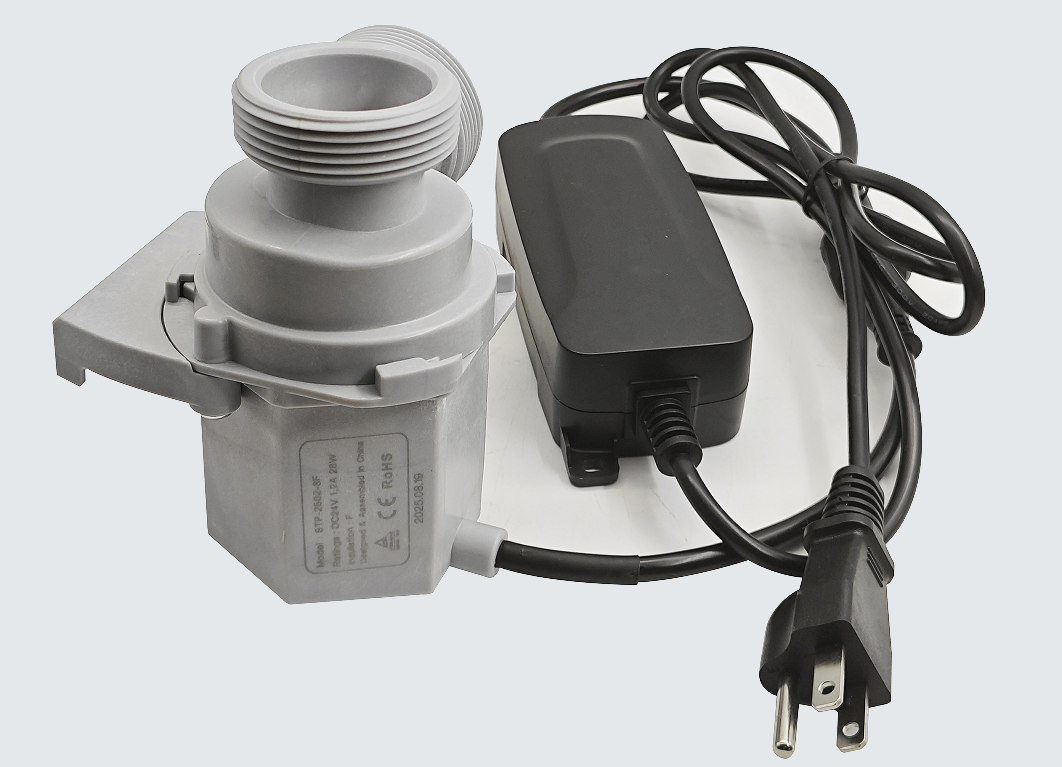

STP-2502 Series DC Drainage Pump

1. Product Overview

The STP-2502-8F is a specialized low-voltage drainage pump engineered for high-efficiency fluid management in 24V DC environments. Ideal for mobile applications, marine systems, or specialized industrial setups requiring safe, low-voltage operation. It features an advanced internal water-cooling architecture that maintains optimal motor temperatures during continuous duty cycles, ensuring superior thermal stability and an extended operational lifespan.

2. Technical Specifications

Parameter	Specification
Model	STP-2502-8F
Voltage	DC 24V
Current	1.2 A
Power Consumption	28 W
Maximum Head	2.0 m
Flow Rate	36 L/min (at 1m head)
Inlet / Outlet Diameter	G1-1/2 (Φ47.8 mm)

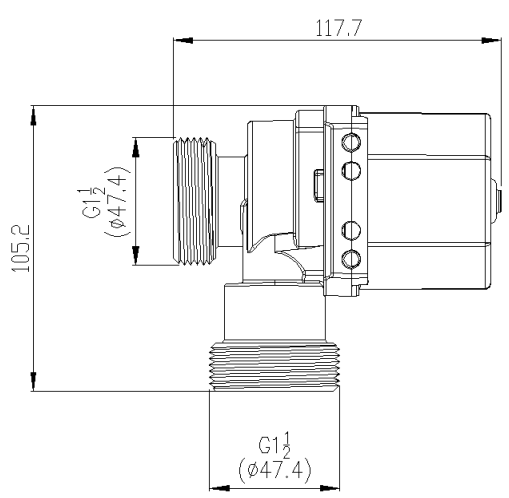

Dimensions (L×W×H)	117.7 × 105.2 × 90 mm

3. Key Features & Engineering Notes

Advanced Thermal Management: The unit utilizes a self-circulating water cooling system. This design keeps the motor temperature constant and moderate, preventing overheating and significantly prolonging the product's service life.
Performance Characteristics: Rated flow and head parameters are tested at a 1-meter head. Please note that flow rate will decrease proportionally as the head height increases.
Customization Capabilities: To accommodate diverse engineering needs, the product installation angle, voltage, and frequency can be customized according to specific customer requirements.
