STP-2110
| Quantity: | |
|---|---|

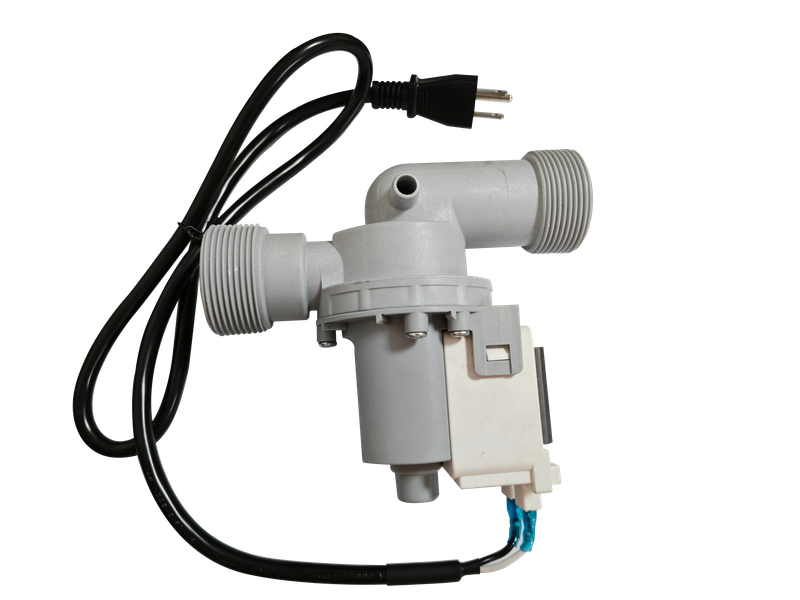

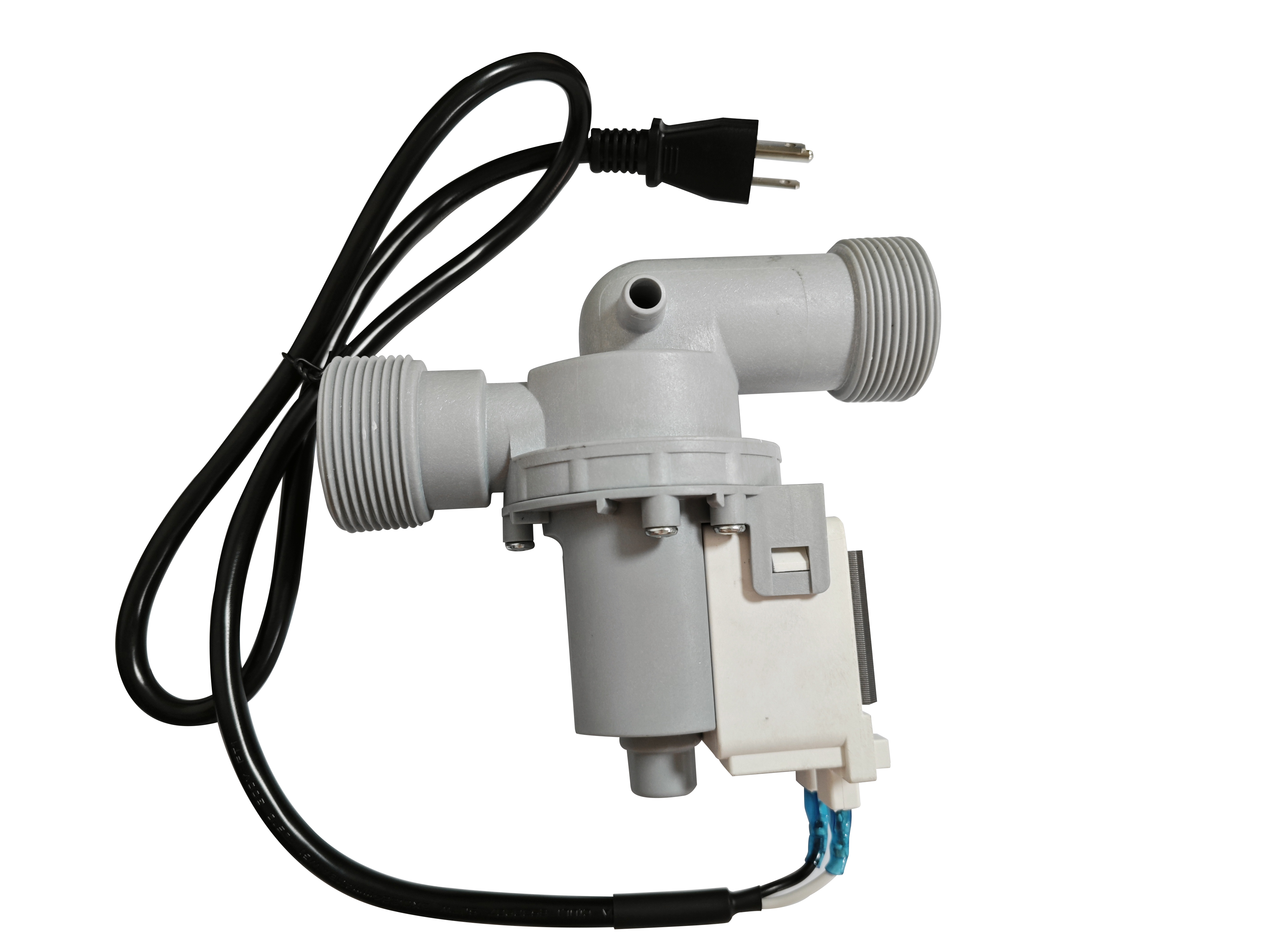

1. Product Overview
The STP-2110 series is a robust drainage pump designed for efficient fluid management in various applications. Available in both 120V and 220-240V configurations, it features a standardized G1-1/2 interface for versatile connectivity. The unit is engineered with a compact footprint suitable for tight installation spaces while maintaining high-performance standards.
2. Electrical & Performance Ratings
Parameter | Model: STP-2110-3F | Model: STP-2110-6F |
|---|---|---|
Rated Voltage | AC 120V | AC 220–240V |
Frequency | Refer to specific nameplate | Refer to specific nameplate |
Current / Power | Data not shown in table | Data not shown in table |
Max Head / Flow Rate | Refer to performance curve | Refer to performance curve |

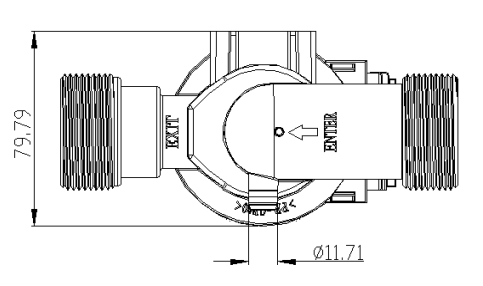

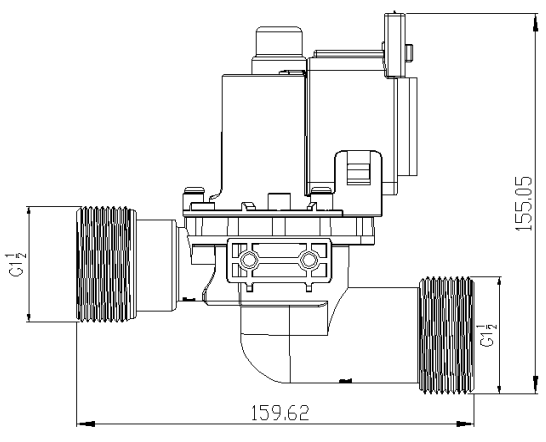

3. Physical Dimensions & Interface
Overall Dimensions (L × W × H):
155 × 159.6 × 79.8 mm
(Compact design optimized for space-constrained environments.)
Hydraulic Interface:
Inlet Diameter: G1-1/2 (Φ47.8mm)
Outlet Diameter: G1-1/2 (Φ47.8mm)
(Standardized threading ensures compatibility with common plumbing fixtures.)
4. Reference Performance Data (Typical Values)
Based on the reference column provided in the technical documentation:
Voltage Context | Current (A) | Power (W) | Max Head (m) | Flow Rate (L/min) |
|---|---|---|---|---|
120V System | 0.85 A | 60 W | 2.5 m | 45 L/min |
220-240V System | 0.35 A | 36 W | 2.0 m | 36 L/min |
Note: The reference data above represents typical operating parameters for the respective voltage classes. Please verify against the specific unit label for precise engineering calculations.
