Spa Jet Replacement Parts for Hot Tub, Pedicure Chair, Whirlpool Tub, Jacuzzi Tub

Pipeless spa jet pump for bathtub and pedicure massage chair tub.
Air massage spa jet pump for hot tub.

Used for drainage and circulating water spraying of hot tub and massage chairs.
Pipeless spray pump, used for spraying and rinsing in portable shampoo basins.
Used in toilets, sewers and other places as flushing water pumps.

Pipeless whirlpool jet pump for hot tub , jaccuzi tub, bathtub.

Application in hot tub, whirlpool bathtub, surfing pool, foot tub and other sanitary wares as spa jet massage pump.

Pipeless hydro jet pump for hot tub, pet bathtub, surfing pool, footbath and other sanitary wares.

Pipelsee spa jets pump for whirlpool tub, hot tub, jacuzzi tub or pedicure massage chair tub.


Applied as foot spa jet pump for pedicure massage chair.

Pipeless hydromassage jet pump for jacuzzi hot tub, whirlpool bathtub, pedicure foot tub.

Pipeless spa jet pump used in whirlpool bathtub, hot tub and jacuzzi tub.

Magnetic jet pump for pedicure Spa chair tub.
Pipeless , strong-pulse, magnetic drive water jet.
The magnetic jet pump can work with disposable pedicure spa liners.
Quiet and safe.
Universal Compatibility. Pipeless Magnetic Motor Jet Pump can be fitted with all Luraco pedicure.

Magnetic jet pump for pedicure spa chair tub.
Air massage jet pump for foot tub.
The magnetic jet pump can work with disposable pedicure spa liners.

Pipeless jet pump with multicoloured LED lights for hot tub, whirlpool bathtub, jacuzzi tub and jet spas.

Whirlpool tub jet spa pump completely different from the previous.
Pipeless pumps have no pipes, no water accumulation, no stink, and are easy to clean, install and maintain.
Each pump is independently controlled, making maintenance and jets replacement easier.
Provides a hygienic and powerful hydrotherapy system.

24V motor Independent water/electricity system,double safety guarantee
External PCB,protect it from the humidity Hi-T.,ensure the longer lifespan
"L"composition of motor water holde,space saving easy installing

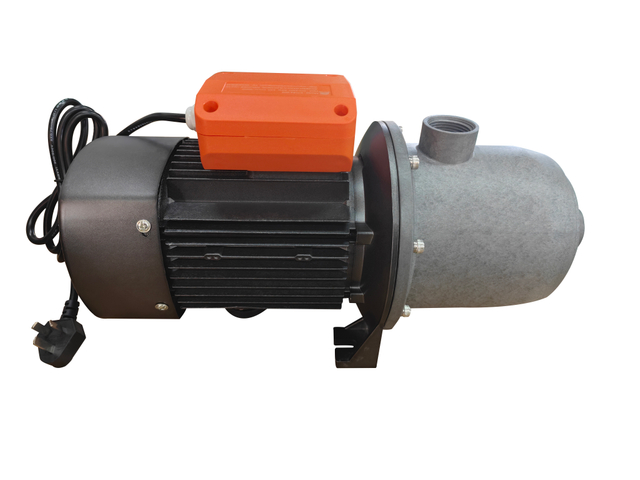

Product Specifications: STNM-302/SNTM-602 Milk Bath System Pump
1. Electrical Parameters
Parameter STNM-302 STNM-602
Rated Voltage AC 110–120V AC 220–240V
Rated Frequency 60Hz 50Hz
Rated Current 5A 4A
Rated Power 900W 900W
2. Hydraulic Specifications
Inlet Diameter: Φ60mm
(Wide-bore inlet design for enhanced flow capacity and reduced cavitation risk.)
Outlet Diameter: Φ48mm
(Precision-machined outlet for secure hose coupling and leak-free operation.)
3. Model Overview
Model Voltage Range Frequency Current Power Application Region
STNM-302 AC 110–120V 60Hz 5A 900W North America / Japan / 60Hz regions
STNM-602 AC 220–240V 50Hz 4A 900W Europe / Asia / 50Hz regions

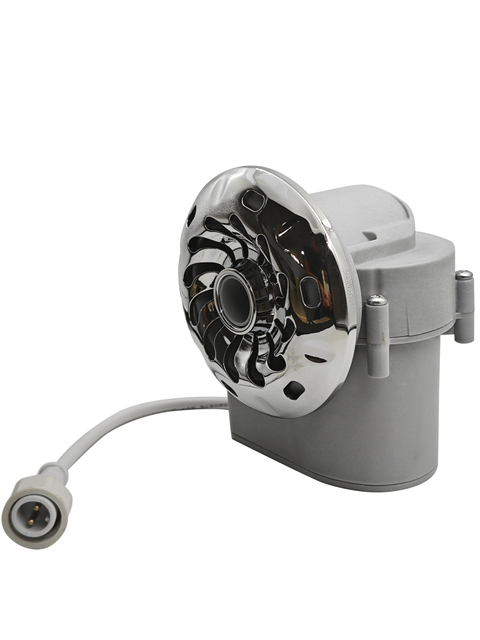

Product Specifications: STP-2501 Series Pipeless Circulation Pump
1. Product Overview
The STP-2501 series is a premium pipeless circulation pump engineered specifically for bathtubs, foot spa basins, and hydrotherapy systems. Utilizing advanced magnetic drive technology and a fully isolated water-electricity structure, it delivers silent, safe, and hygienic water circulation, ensuring a superior user experience in wet environments.
2. Installation & Dimensions
Mounting Hole Size: Φ69–70 mm
(Universal fitment for standard bathtub and spa basin cutouts.)
Overall Dimensions (L × W × H): 127.5 mm × 99 mm × 88.3 mm
(Compact footprint designed for seamless integration into modern sanitary ware.)
3. Key Technical Features & Safety Mechanisms
Advanced Magnetic Drive Transmission:
Utilizes magnetic induction technology to completely separate the motor assembly from the water chamber and impeller. This isolation prevents leakage, eliminates cross-contamination, and significantly simplifies cleaning and maintenance, ensuring the highest standards of hygiene.
Dual Safety Isolation (Water-Electricity Separation):
Designed with a fully independent water and electrical system structure. This rigorous separation ensures absolute user safety by preventing any electrical contact with the water circuit during operation.
Intelligent Dry-Run Protection:
Equipped with advanced electronic monitoring software that detects water levels in real-time. The system automatically shuts down the motor in "no-water" or "low-water" conditions, protecting both the user and the equipment from damage.
Thermally Isolated Control System:
The main control board (PCB) is physically separated from the motor body. This design shields sensitive electronic components from high temperatures and humidity, greatly extending the product's service life and reliability.
