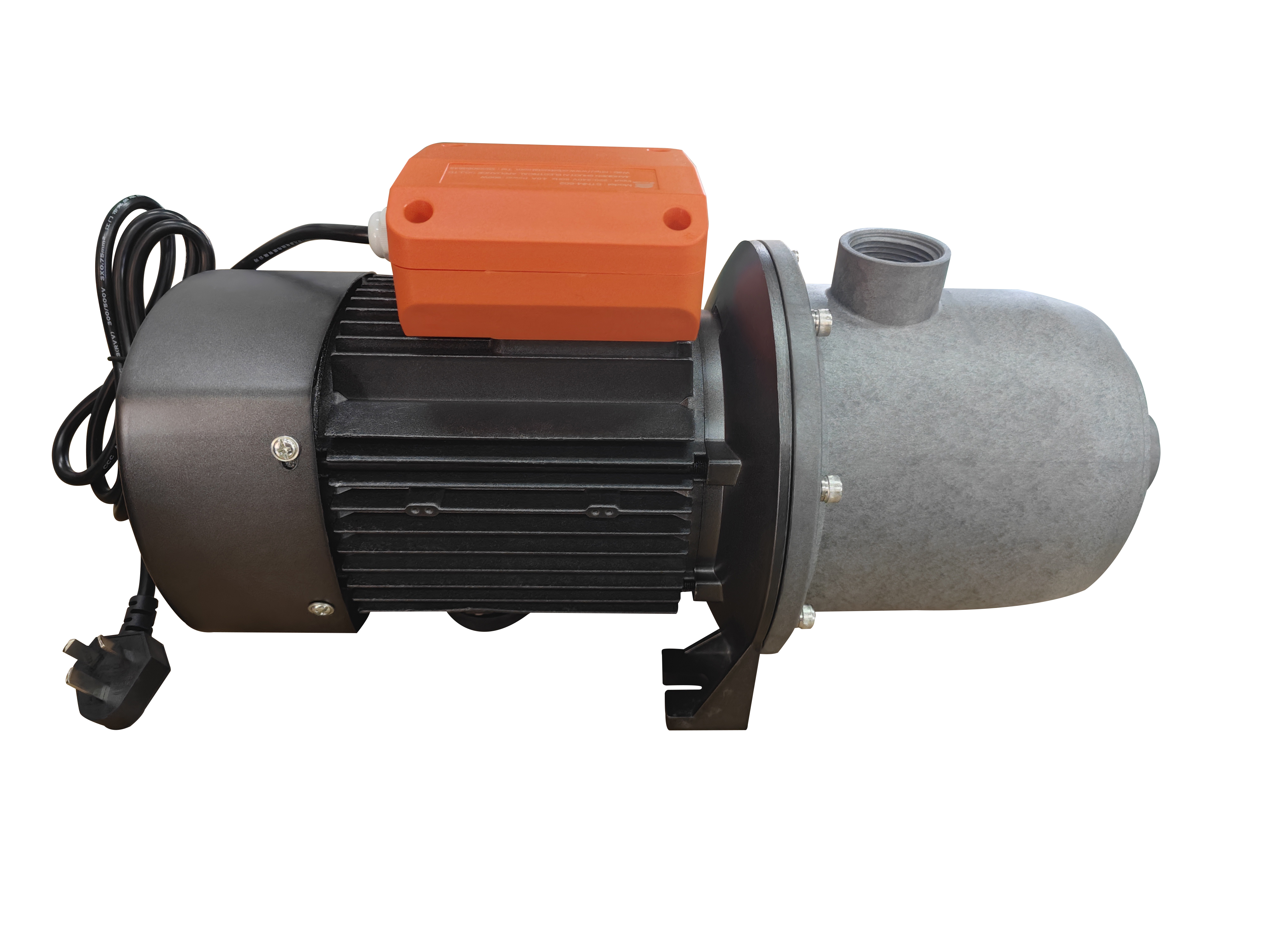

STNM-302/602 Milk Bath System Pump

Product Specifications: STM-302/STM-602 Milk Bath System Pump
1. Electrical Parameters
Parameter STM-302 STM-602
Rated Voltage AC 110–120V AC 220–240V
Rated Frequency 60Hz 50Hz
Rated Current 5A 4A
Rated Power 900W 900W

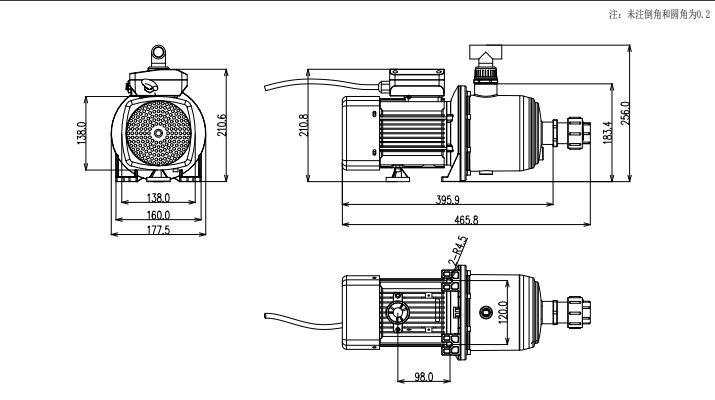

2. Hydraulic Specifications
Inlet Diameter: Φ60mm
(Wide-bore inlet design for enhanced flow capacity and reduced cavitation risk.)
Outlet Diameter: Φ48mm
(Precision-machined outlet for secure hose coupling and leak-free operation.)
3. Model Overview
Model Voltage Range Frequency Current Power Application Region
STM-302 AC 110–120V 60Hz 5A 900W North America / Japan / 60Hz regions
STM-602 AC 220–240V 50Hz 4A 900W Europe / Asia / 50Hz regions
