STP-2415 Tubeless Pump

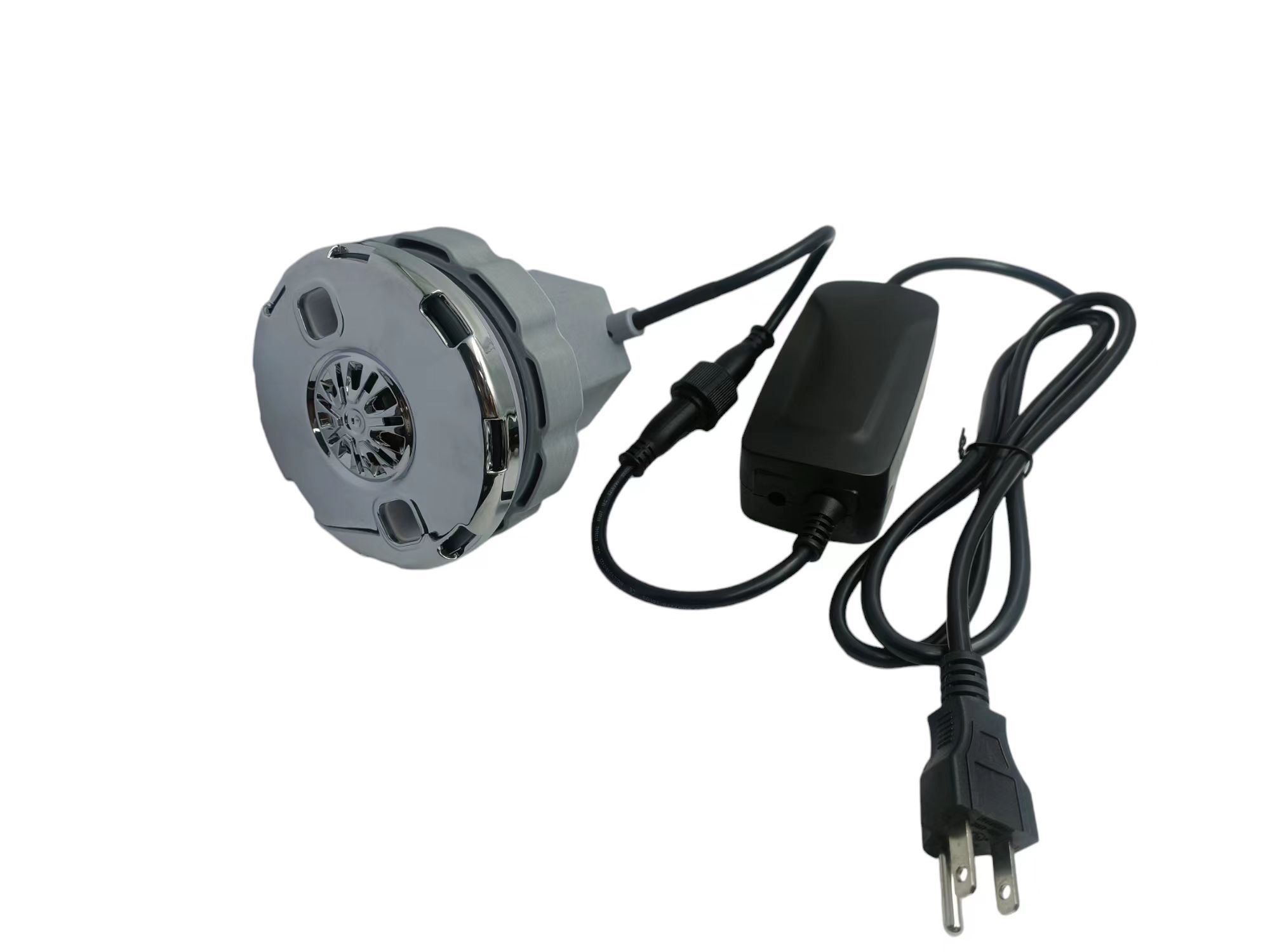

Product Specifications: STP-2415-8C Pipeless Circulation Pump

1. Product Overview
The STP-2415-8C is a premium pipeless circulation pump engineered specifically for bathtubs, foot spa basins, and hydrotherapy systems. Utilizing advanced magnetic drive technology and a fully isolated water-electricity structure, it delivers silent, safe, and hygienic water circulation, ensuring a superior user experience in wet environments.

2. Electrical Ratings

3. Installation & Dimensions

• Mounting Hole Size: Φ89.9 mm

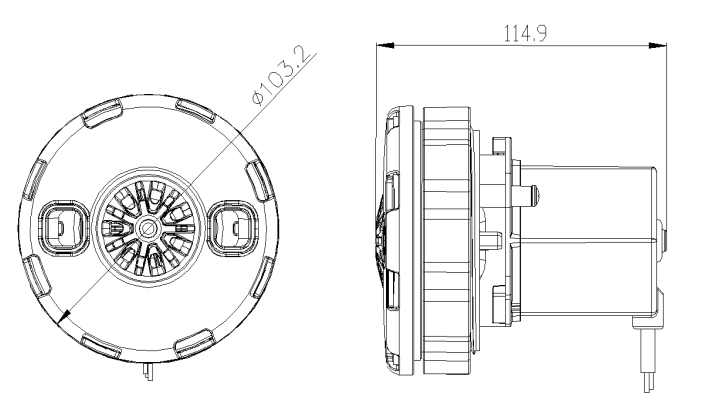

• Overall Dimensions: 114.9 mm (L) × Φ103.2 mm (D)
  (Compact design optimized for integration into standard bathtub and spa basin structures.)

4. Key Features & Technologies

• Magnetic Drive Transmission:
  Employs electromagnetic induction to completely separate the water chamber and impeller from the motor body. This design prevents cross-infection, facilitates easy cleaning and maintenance, and supports the use of disposable liners for enhanced hygiene.


• Independent Water/Electricity System (Double Safety):
  Features a DC 24V motor with a fully isolated water and electricity structure. This ensures maximum user safety by eliminating the risk of electric leakage in wet environments.

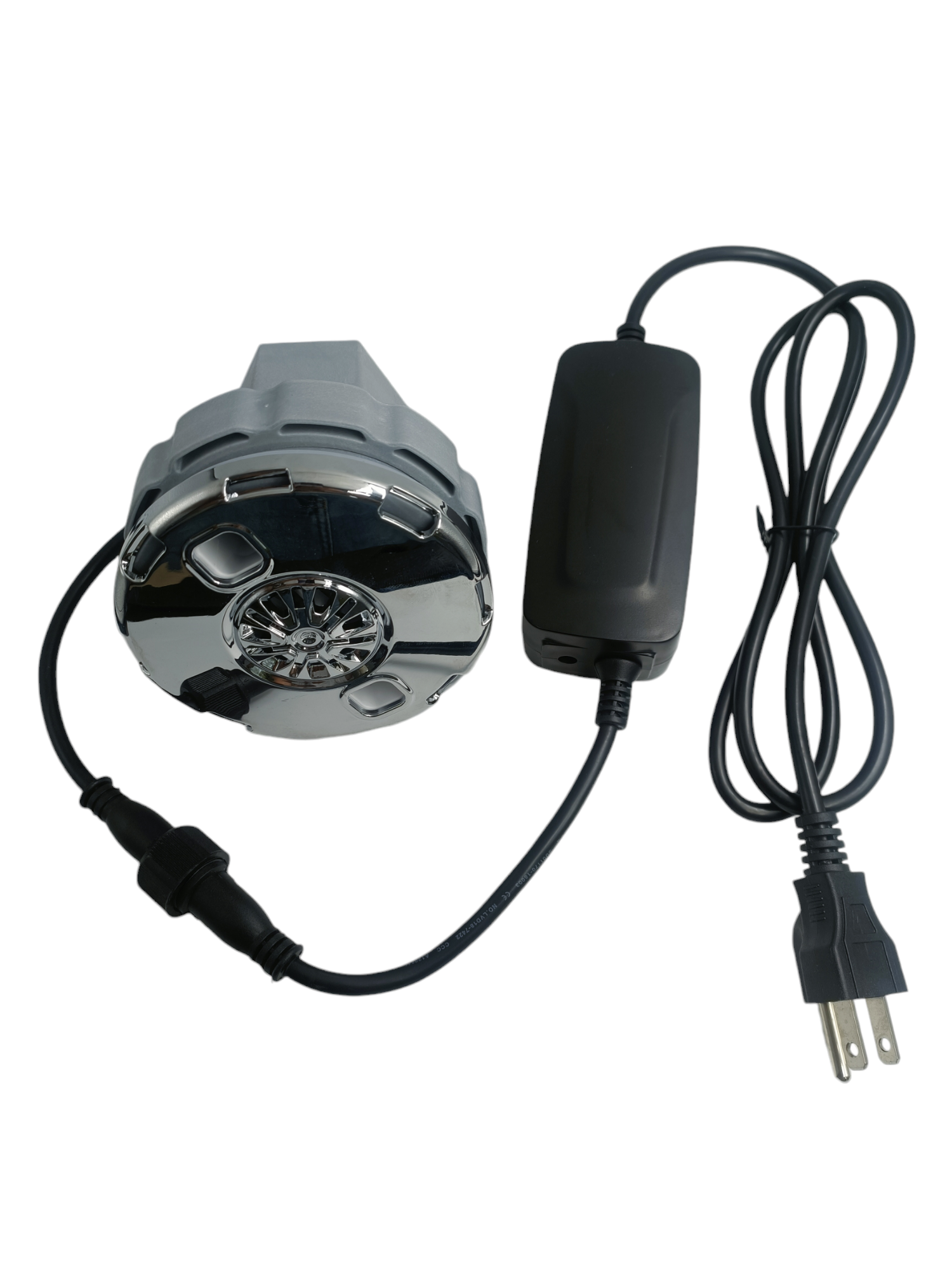

• External PCB Design:
  The main control board is separated from the motor body. This external placement protects sensitive electronic components from high humidity and temperature fluctuations inside the pump, significantly extending the product's lifespan.


• Smart Dry-Run Protection:
  Equipped with advanced software algorithms that monitor water levels in real-time. The motor automatically stops running when no water or low water is detected, preventing damage and ensuring operational safety.
