STD-2307-8
| Quantity: | |
|---|---|

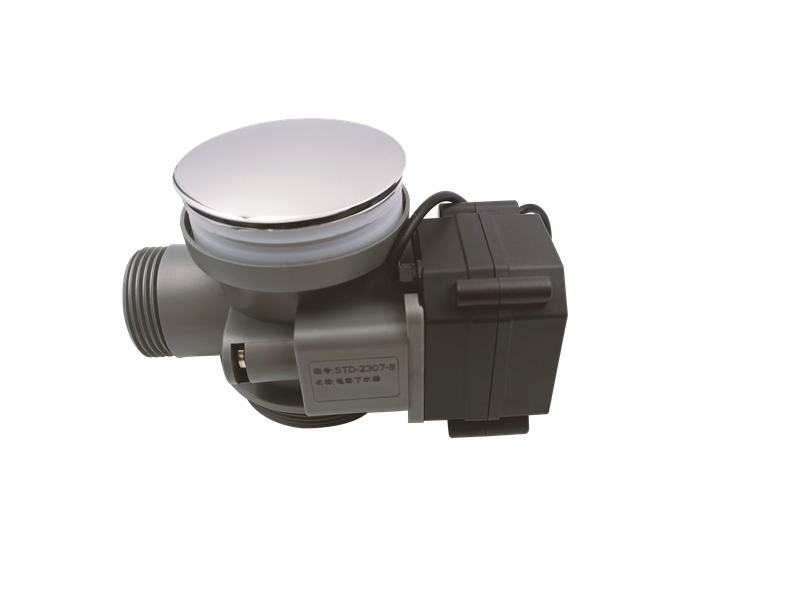

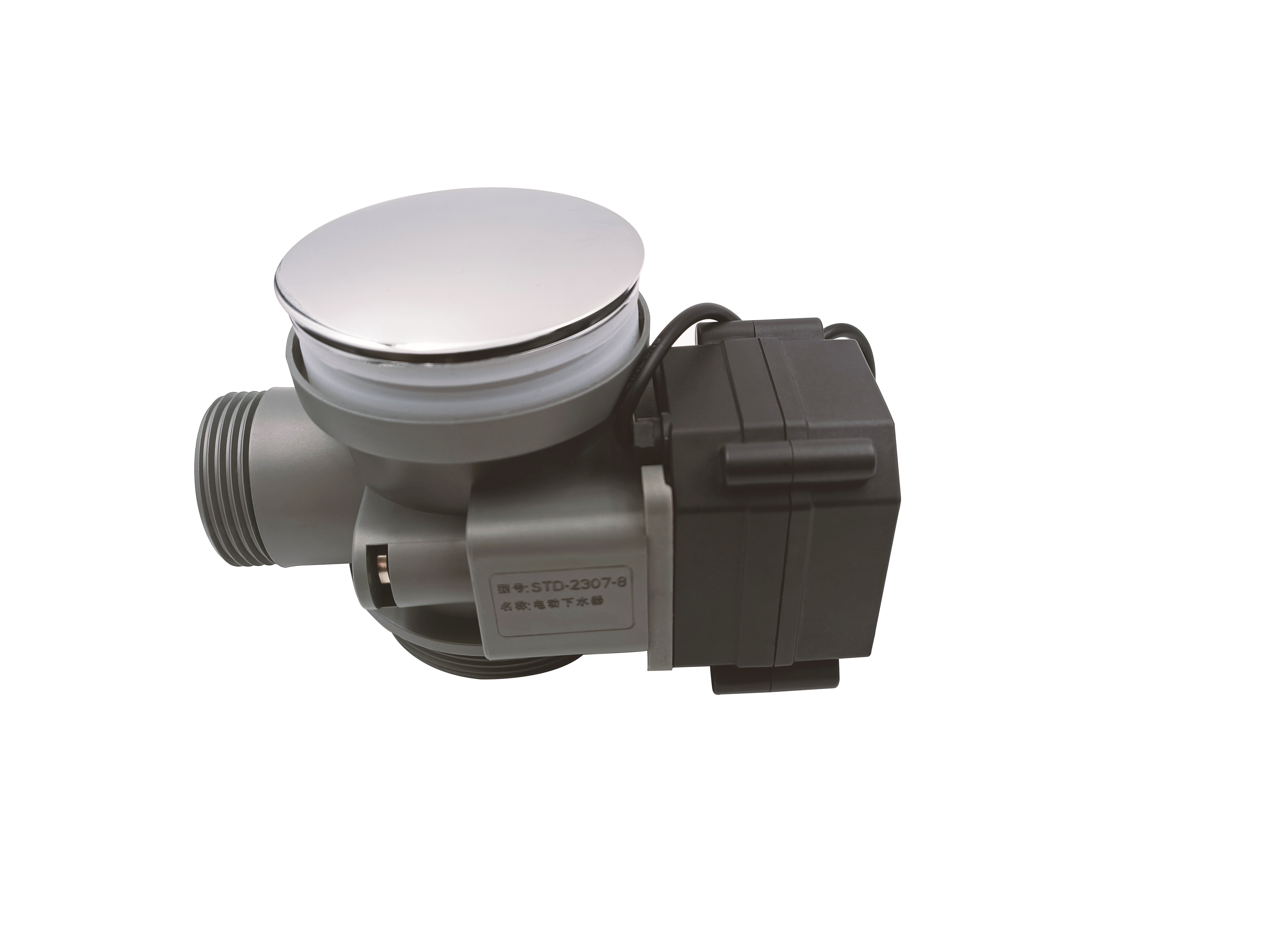

1. Product Overview
The STD-2307-8 is a versatile drain assembly designed for modern sanitary applications. Featuring a wide voltage input range (AC/DC 9-24V) and a compact form factor, it ensures reliable operation and easy integration into various basin or tub structures requiring a standard 50mm mounting interface.
2. Electrical Ratings
Parameter | Specification |
|---|---|
Model Number | STD-2307-8 |
Rated Voltage | AC/DC 9–24V |
Rated Current | 500 mA |

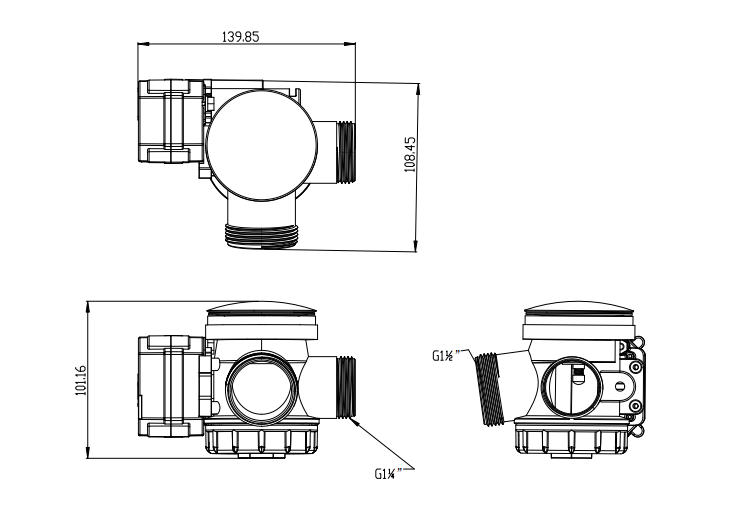

3. Installation & Dimensions
Mounting Hole Size: Φ50 mm
Overall Dimensions: 139.85 mm (L) × 108.45 mm (W) × 101.2 mm (H)
