STD-2309-8
| Quantity: | |
|---|---|

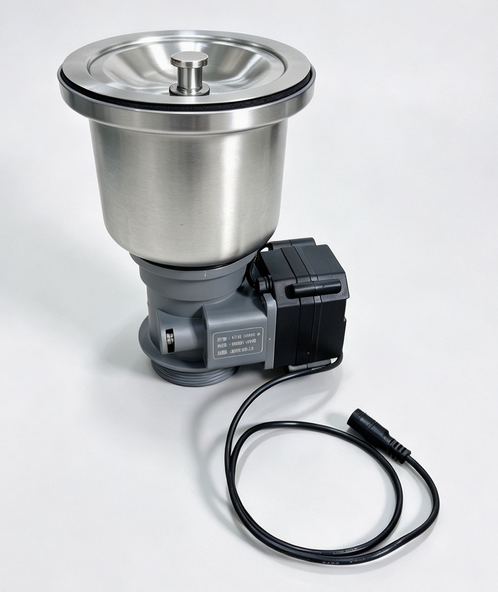

1. Product Overview
The STD-2309-8 is an advanced electric drain actuator designed specifically for kitchen sinks and basins. Operating on a safe low-voltage DC input, it provides reliable automated control for drainage systems. Its compact design allows for installation in spaces with a mounting hole of up to Φ80mm, ensuring versatility for various sink configurations.
2. Electrical Ratings
Parameter | Specification |
|---|---|
Model Number | STD-2309-8 |
Rated Voltage | DC 9–24V |
Rated Current | 500 mA |
3. Installation & Dimensions
Mounting Hole Size: < Φ80 mm (Compatible with holes smaller than 80mm)
Overall Dimensions: 127.5 mm (L) × 99 mm (W) × 88.3 mm (H)
