STP-2311
| Quantity: | |
|---|---|
1. Product Overview

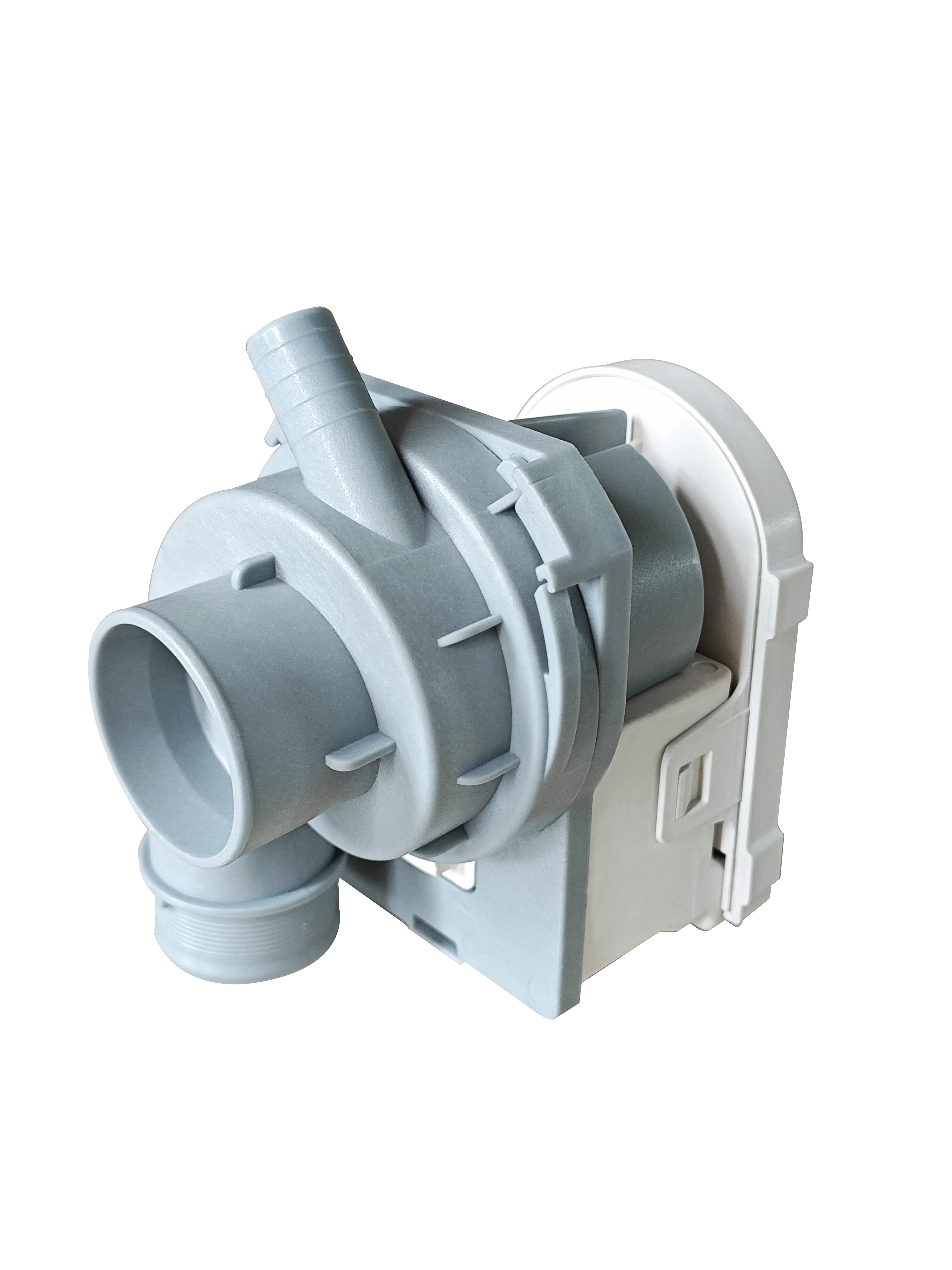

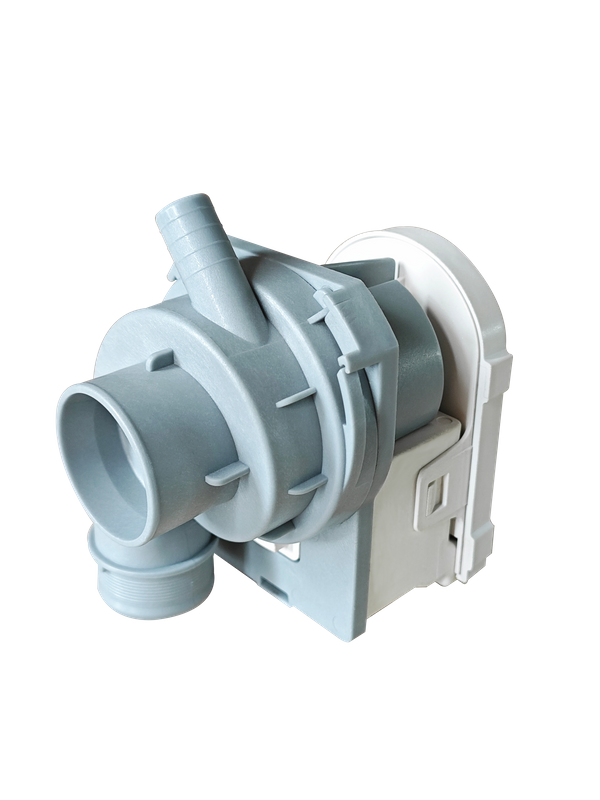

The STP-2311 series is a compact, high-performance drainage pump engineered specifically for household and commercial cleaning appliances. It is designed to provide reliable fluid transfer for dishwashers, vegetable washing machines, and similar sanitation equipment, ensuring efficient water discharge and optimal system performance.
2. Technical Parameters
Parameter | Model: STP-2311-3F01 | Model: STP-2311-6F01 |
|---|---|---|
Rated Voltage | AC 120V | AC 220-240V |
Frequency | 60Hz | 50Hz |
Rated Current | 0.78 A | 0.25 A |
Power Consumption | 56 W | 34 W |
Maximum Head | 2.5 m | 2.2 m |
Flow Rate (at 1m Head) | 43 L/min | 50 L/min |
3. Hydraulic & Interface Specifications

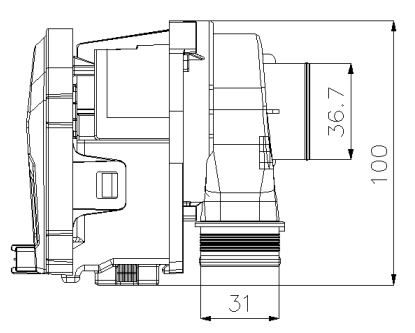

Inlet Diameter: Φ36.7 mm
(Optimized inlet geometry for smooth water intake and reduced noise.)
Outlet Diameter: Φ31 mm / Φ12.83 mm
(Versatile outlet configuration compatible with standard drainage hose assemblies.)
4. Physical Dimensions

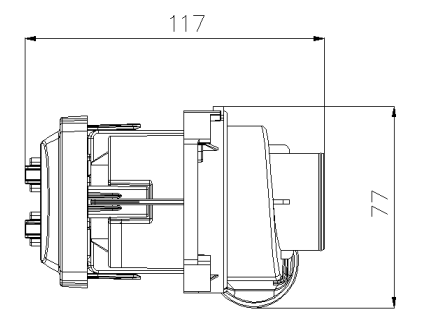

Overall Size (L × W × H): 117 mm × 100 mm × 77 mm
(Space-saving design ideal for integration into compact appliance chassis.)
5. Key Features
High Efficiency: Delivers substantial flow rates (up to 50L/min) with low power consumption.
Application Versatility: Specifically calibrated for the drainage cycles of dishwashers and produce washers.
Global Compatibility: Available in both 60Hz (North America/Asia) and 50Hz (Europe/Asia) variants to suit international markets.
