Spa Jet Replacement Parts for Hot Tub, Pedicure Chair, Whirlpool Tub, Jacuzzi Tub

Shuotai jet magnetic pump STP-1503-3G/6G use magnetic drive transmission technology, disposable pedicure spa liners can be used in pedicure chair spa tub to complete separated motor & jet, avoid the crossinfection effectively and easy the cleaning and maintenance. High quality with competitive price, good service and guarantee.

Overview： The water auto fill control system is equipped with an auto-stop sensor to prevent overflow.
The auto fill control system can work with any jet in your current pedicure spa tub.
High-end auto-fill controller kit for pedicure Spa chair foot tubs, customizable to meet your specific requirements.

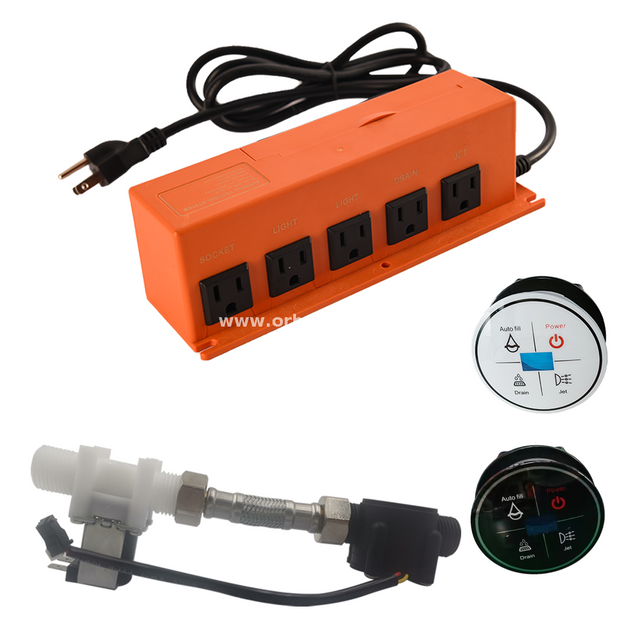

Auto Fill Kit Includes :
Control Box * 1
Touch Button * 1 (black , white or other，can display the temperature or not)
Auto Fill Inlet Valve with Flowmeter and Temperature Sensor(optional) * 1

Magnetic Jet Head Set : The kit includes cover *1, magnetic impeller *1, base *1
Pedicure SPA chair parts magnetic head (3 pin or 4pin) for jet motor.
The pipeless magnetic motor jet head is suitable for magnetic pumps of various brands of pedicure spa chairs, including Luraco.


Plumbing component for pedicure spa chair parts.
Top quality plumbing parts and accessories for your pedicure spa chairs with best price ever.

Pipeless jet pump with multicoloured LED lights for hot tub, whirlpool bathtub, jacuzzi tub and jet spas.

Whirlpool tub jet spa pump completely different from the previous.
Pipeless pumps have no pipes, no water accumulation, no stink, and are easy to clean, install and maintain.
Each pump is independently controlled, making maintenance and jets replacement easier.
Provides a hygienic and powerful hydrotherapy system.

24V motor Independent water/electricity system,double safety guarantee
External PCB,protect it from the humidity Hi-T.,ensure the longer lifespan
"L"composition of motor water holde,space saving easy installing

Magnetic nozzle set composition: 1 cover, 1 magnetic impeller, 1 base
Motor compatibility: compatible with 110–240V and DC24V motors, and applicable to 110V 60Hz motors

Overview：
The water auto fill control system is equipped with an auto-stop sensor to prevent overflow.
The auto fill control system can work with any jet in your current pedicure spa tub.
High-end auto-fill controller kit for pedicure Spa chair foot tubs, customizable to meet your specific requirements.

Embedded Water Level Gauge

Product Specifications: STF-803 Series Ultrasonic Atomizer
1. Electrical Parameters
Rated Voltage: DC 24V
Rated Current: 1.25 A
Power Consumption: 30 W
Frequency: N/A (Direct Current Operation)
2. Performance Metrics
Maximum Atomization Rate: 300 ml/h
(Ensures high-efficiency mist generation for optimal humidification or cooling applications.)
3. Reservoir Capacity
Integrated Water Tank Volume: 300 ml
(Compact design suitable for continuous operation cycles.)
4. Physical Dimensions & Interface
Overall Dimensions (L × W × H): 178.3 mm × 158.3 mm × 148 mm
Inlet/Outlet Configuration: Integrated design (Specific inlet/outlet diameter parameters not applicable for this model configuration).

Product Specifications: STF-7016 Series Industrial Blower
1. Electrical Ratings
Rated Voltage: DC 12V
(Standard low-voltage DC input for safe and efficient operation.)
Rated Current: 6.0 A
(Consistent current draw across the series ensuring stable power supply requirements.)
2. Power Output Variants
The STF-7016 series is available in three distinct power configurations to suit varying airflow and pressure demands:
Model STF-7016B: 27 W
Model STF-7016C: 40 W
Model STF-7016D: 42 W

Product Specifications: STNM-302/SNTM-602 Milk Bath System Pump
1. Electrical Parameters
Parameter STNM-302 STNM-602
Rated Voltage AC 110–120V AC 220–240V
Rated Frequency 60Hz 50Hz
Rated Current 5A 4A
Rated Power 900W 900W
2. Hydraulic Specifications
Inlet Diameter: Φ60mm
(Wide-bore inlet design for enhanced flow capacity and reduced cavitation risk.)
Outlet Diameter: Φ48mm
(Precision-machined outlet for secure hose coupling and leak-free operation.)
3. Model Overview
Model Voltage Range Frequency Current Power Application Region
STNM-302 AC 110–120V 60Hz 5A 900W North America / Japan / 60Hz regions
STNM-602 AC 220–240V 50Hz 4A 900W Europe / Asia / 50Hz regions

Product Specifications: STP-2311 Series High-Efficiency Drainage Pump
1. Product Overview
The STP-2311 series is a compact, high-performance drainage pump engineered specifically for household and commercial cleaning appliances. It is designed to provide reliable fluid transfer for dishwashers, vegetable washing machines, and similar sanitation equipment, ensuring efficient water discharge and optimal system performance.
2. Hydraulic & Interface Specifications
Inlet Diameter: Φ36.7 mm
(Optimized inlet geometry for smooth water intake and reduced noise.)
Outlet Diameter: Φ31 mm / Φ12.83 mm
(Versatile outlet configuration compatible with standard drainage hose assemblies.)
3. Physical Dimensions
Overall Size (L × W × H): 117 mm × 100 mm × 77 mm
(Space-saving design ideal for integration into compact appliance chassis.)
4. Key Features
High Efficiency: Delivers substantial flow rates (up to 50L/min) with low power consumption.
Application Versatility: Specifically calibrated for the drainage cycles of dishwashers and produce washers.
Global Compatibility: Available in both 60Hz (North America/Asia) and 50Hz (Europe/Asia) variants to suit international markets.

Product Specifications: STP-2501 Series Pipeless Circulation Pump
1. Product Overview
The STP-2501 series is a premium pipeless circulation pump engineered specifically for bathtubs, foot spa basins, and hydrotherapy systems. Utilizing advanced magnetic drive technology and a fully isolated water-electricity structure, it delivers silent, safe, and hygienic water circulation, ensuring a superior user experience in wet environments.
2. Installation & Dimensions
Mounting Hole Size: Φ69–70 mm
(Universal fitment for standard bathtub and spa basin cutouts.)
Overall Dimensions (L × W × H): 127.5 mm × 99 mm × 88.3 mm
(Compact footprint designed for seamless integration into modern sanitary ware.)
3. Key Technical Features & Safety Mechanisms
Advanced Magnetic Drive Transmission:
Utilizes magnetic induction technology to completely separate the motor assembly from the water chamber and impeller. This isolation prevents leakage, eliminates cross-contamination, and significantly simplifies cleaning and maintenance, ensuring the highest standards of hygiene.
Dual Safety Isolation (Water-Electricity Separation):
Designed with a fully independent water and electrical system structure. This rigorous separation ensures absolute user safety by preventing any electrical contact with the water circuit during operation.
Intelligent Dry-Run Protection:
Equipped with advanced electronic monitoring software that detects water levels in real-time. The system automatically shuts down the motor in "no-water" or "low-water" conditions, protecting both the user and the equipment from damage.
Thermally Isolated Control System:
The main control board (PCB) is physically separated from the motor body. This design shields sensitive electronic components from high temperatures and humidity, greatly extending the product's service life and reliability.

Product Specifications: STP-2502-8F Series High-Performance Drainage Pump
1. Product Overview
The STP-2502-8F is a robust DC drainage pump designed for efficient fluid transfer in specialized equipment. Featuring an innovative internal water-cooling circulation structure, it maintains stable operating temperatures to ensure longevity and reliability. This model offers flexible customization options for installation and electrical parameters to meet diverse engineering requirements.
2. Technical Parameters
Parameter Specification
Model Number STP-2502-8F
Rated Voltage DC 24V
Rated Current 1.2 A
Power Consumption 29 W
Maximum Head 2.0 m
Flow Rate (at 1m Head) 36 L/min
Frequency N/A (DC Operation)
3. Hydraulic Interface & Dimensions
Inlet Diameter: G1-1/2 (Φ47.8mm)
(Standard threaded interface for secure connection.)
Outlet Diameter: G1-1/2 (Φ47.8mm)
Overall Dimensions (L × W × H): 153 × 151.6 × 79.7 mm
4. Key Features & Engineering Notes
Advanced Water-Cooling System:
Adopts an internal circulating water-cooling structure. This design effectively stabilizes the motor's temperature rise during operation, ensuring the product operates in a constant, moderate temperature environment, which significantly extends the service life cycle.

Performance Characteristics:
Parameters are tested at a 1-meter head. Please note that the flow rate decreases as the head increases.

Customization Capabilities:
We offer tailored engineering solutions. The product installation angle, voltage, and frequency can be designed and manufactured according to specific customer requirements.
